Engineered PTFE for the lines that can’t fail
Virgin PTFE tube, stainless braided hose, FEP and PFA — extruded and assembled in our own plant, made to your drawing and shipped to Australian sites.
01 · LINERVirgin PTFE, FDA 21 CFR 177.1550
HOSE SERVICE RANGE−65 → +260 °C
We don’t sell hose off a roll. We make it for the line it has to survive.
Ram and paste extrusion, in-process dimensional checks, and a batch record for every length. Every bore, wall and fitting is set by your media, temperature and pressure — not by what happens to be in stock.
- Established, Vasai East
- 2011
- Established, Vasai East
- Years of fluoropolymer processing
- 15+
- Years of fluoropolymer processing
- Industries supplied
- 32+
- Industries supplied
01Inside the hose

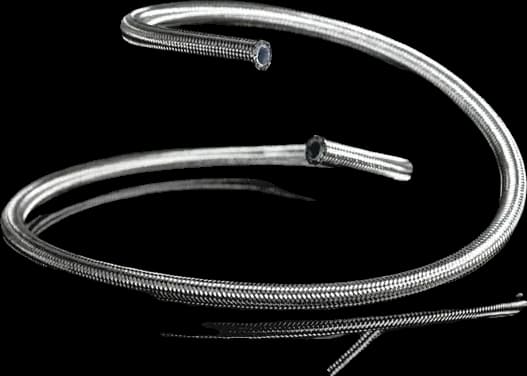

Four layers, each with a job
- 01Virgin PTFE linerSmooth or corrugated bore — the only part your media touches. FDA 21 CFR 177.1550, inert to almost every industrial chemical.
- 02Stainless or textile braidSS304, SS316 or high-tenacity yarn carries the pressure: 207 bar working on a −3, 52 bar on a −20.
- 03Crimped ferruleA swaged sleeve locks braid and liner into a leak-tight, pull-out resistant joint.
- 04End fittingBSP, NPT, JIC, DIN or flanged, in SS304, SS316 or carbon steel — matched to what’s already on your plant.

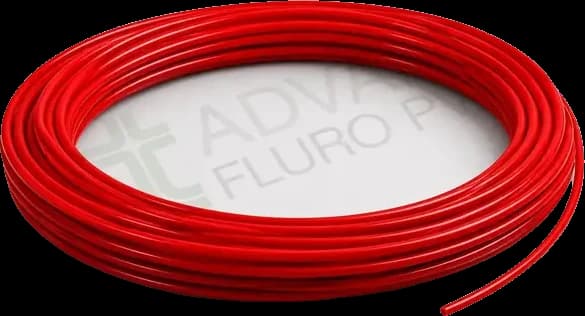

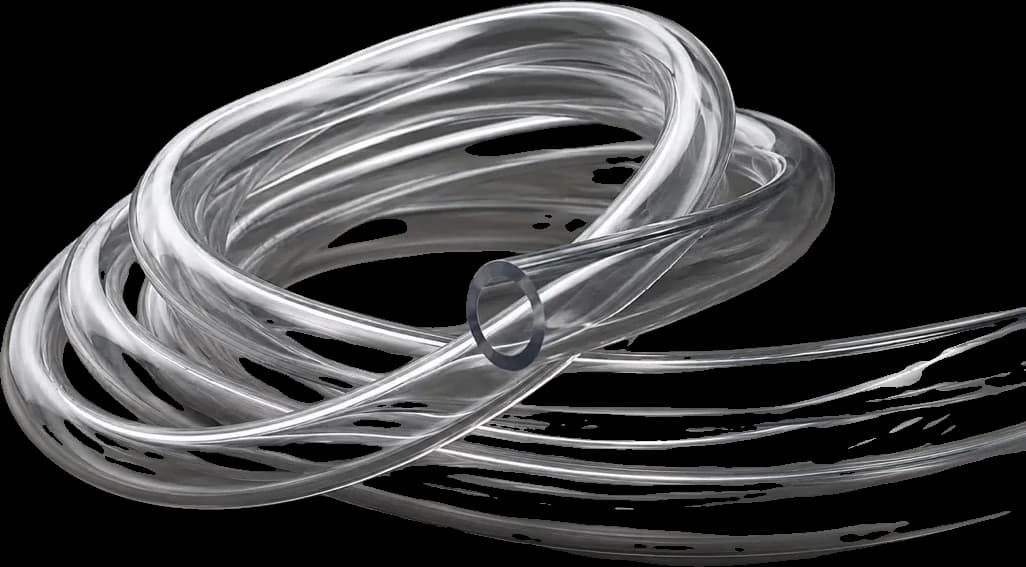

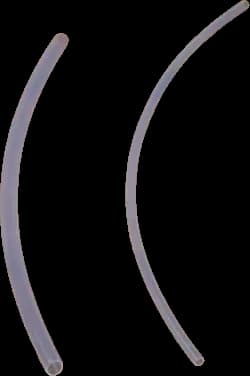

02The rangeFive materials.
All products and variants →Five materials.
One standard.
03Configurator
Pick a bore. See the numbers.
Every figure comes straight from our SAE 100R14 table.

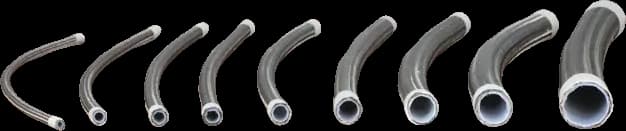

- ID
- 7.5–8.4 mm
- OD
- 10.4–11.6 mm
- MIN BEND
- 100 mm
- MAX WORKING
- 172 bar
- BURST
- 690 bar
- BRAID
- SS304
−6 · 8 mm nominal · Table ratings apply to smooth-bore SS304 braided hose. · −65 to +260 °C
Quote this assembly in AUD04Australian industry
Industries and case studies →Where rubber gives up
01Mining & resourcesChemical transfer hose for acids, alkalis, solvents and hydrocarbons · Process plant transfer, heating and cooling hoseSee applications →02Food & beverageDeep-frying oil and fat recirculation · Corn syrup transfer and jam packaging heat linesSee applications →03Chemical processingChemical transfer hose · Urethane foam machine supply linesSee applications →04PharmaceuticalSteam hose for autoclave and CIP systems · Flexible joints in process pipingSee applications →05Water & wastewater[CONFIRM: dosing applications]See applications →06Oil & gasOil transfer hose · Offshore chemical injection linesSee applications →
05From our customers
On spec, on time
“AFPL supplied FDA-grade PTFE tubing for our API manufacturing line. Documentation was complete, dimensions were accurate to spec, and the team was responsive throughout. Highly recommended.”
“I was looking for high-quality PTFE hoses for our factory and AFPL fit the bill perfectly. They perform brilliantly under challenging environmental and industrial conditions. Very happy with the product quality.”
“Excellent prompt attention in arranging delivery within a very short time. We are ever thankful to AFPL for their exemplary trust-based business and helping us in times of critical need.”
